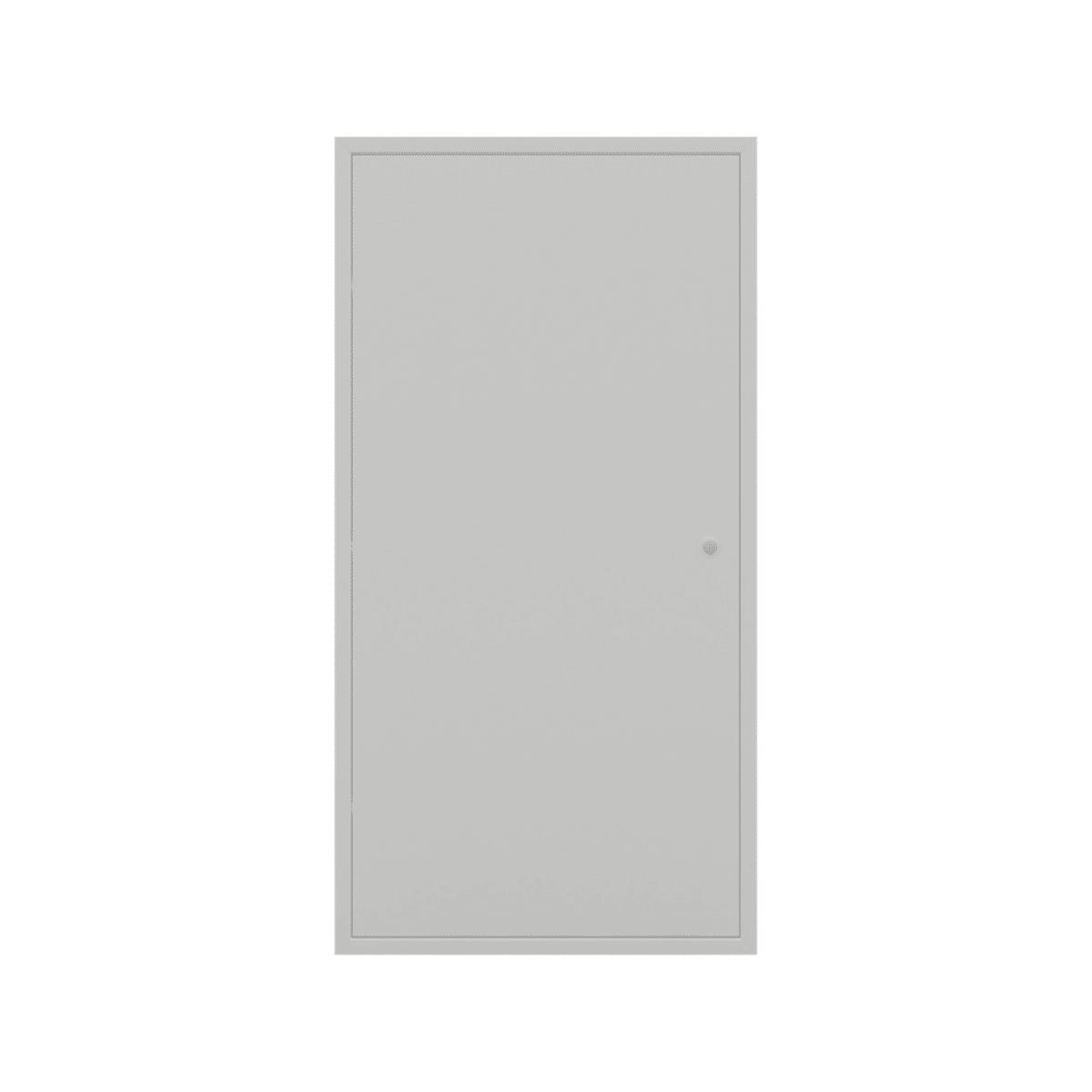

1 Hour Fire Rated Metal Single Riser Door Access Panel 3 Point Lock
-
$ 81.45
The1 Hour Fire Rated Metal Single Riser Door Access Panel provides a secure and discreet solution for concealing essential building services while maintaining fire compartmentation within internal wall systems. Designed for use in service risers and vertical service shafts, these access panels allow convenient maintenance access to concealed services while helping to contain the spread of fire between building compartments. Tested to BS EN 1634-1, the riser door provides up to 60 minutes fire resistance from the front face when installed in wall applications, making it suitable for use in multi-storey buildings where fire protection is required. Manufactured in the UK from durable Zintec steel, each panel features a metal faced door leaf and is supplied with a three-point locking system operated by a tee key, ensuring the door remains securely closed while allowing authorised access for maintenance. The panels are available in two frame styles to suit different installation requirements: Picture Frame A 25mm wide frame designed to neatly cover rough structural openings for a clean and professional finish. Beaded Frame Designed to integrate flush within plasterboard wall systems for a more seamless installation. Both options are finished in RAL 9010 white polyester powder coating (30% gloss) as standard. Alternative colours and bespoke sizes are available upon request. These riser doors are ideal for concealing pipework, plumbing systems, electrical cabling, ventilation ducting, and HVAC services within internal wall constructions while maintaining safe access for inspection and maintenance. Key Features & Benefits 1 Hour Fire Rated (FR60) integrity from the front face Tested to BS EN 1634-1 fire resistance standards Suitable for internal wall installations only Choice of Picture Frame or Beaded Frame designs Metal faced single door construction Three-point locking system supplied as standard Tee key included Manufactured from Zintec steel for durability Powder coated RAL 9010 white (30% gloss) UK manufactured Available in standard sizes and bespoke sizes up to 2000 600mm Construction Door leaf: 0.9mm Zintec steel Frame: 1.2mm Zintec steel Door type: Metal faced single door Locking system: 3-point locking system with tee key The panel is designed to fit within joint-less plasterboard wall systems forming part of a structural membrane. Fire Performance 1 Hour fire integrity rating (FR60) Tested in accordance with BS EN 1634-1 Suitable for wall installations up to 2000 600mm Seals Intumescent Seals Yes Draught Seals No Smoke Seals No Air Seals No Acoustic Seals No Installation Information For correct installation, the structural opening must be 7mm larger than the panel size ordered to allow fitting tolerance. The frame should be fixed securely within the prepared opening, ensuring it is square before refitting the door and locking it flush with the frame. Independent bracing or additional support may be required depending on the size and weight of the riser door. Applications These fire rated riser doors are commonly used for: Service risers in multi-storey buildings Plumbing and pipework access Electrical and data cabling HVAC ductwork access Maintenance inspection points Commercial and residential developments Important Information Suitable for internal wall installations only Not recommended for external use Made to order product therefore not eligible for return. Structural opening must be 7mm larger than the panel size
